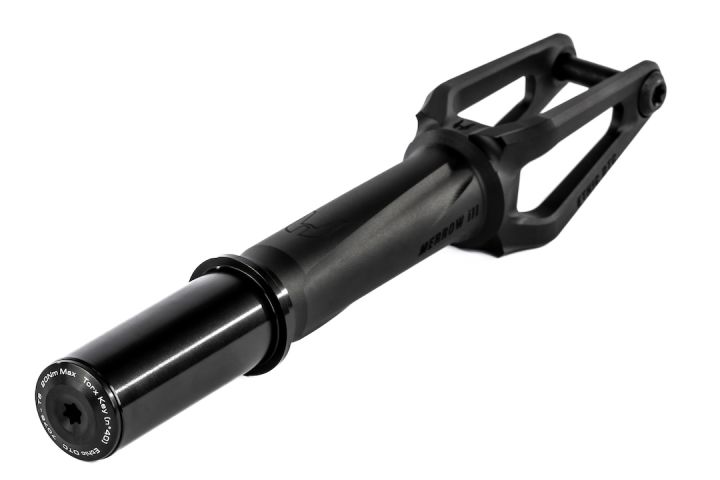

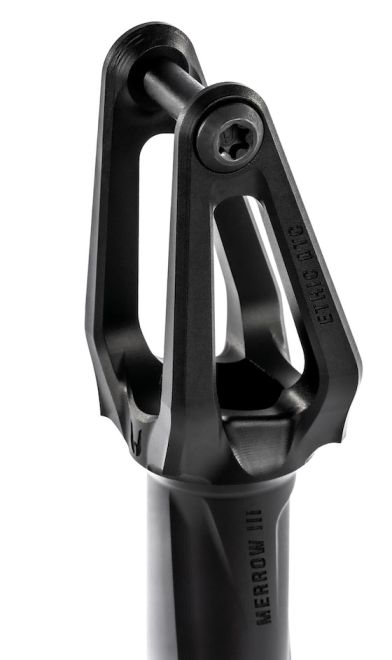

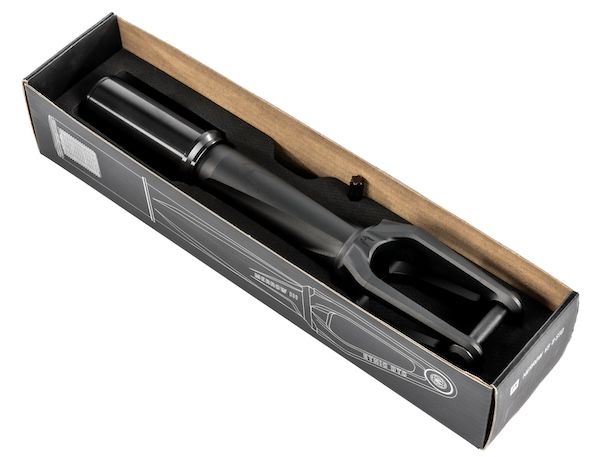

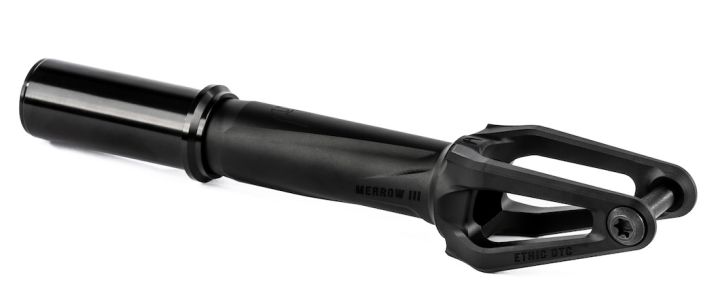

Horquilla Ethic Merrow V3 IHC Black

Brand

Ethic
97,96 €
Disponibilidad: Disponible
SKU
15031
Marca
Ethic
Más Información
Peso 228
Tube length 165
Design One piece
Tenedor offset Offset
Compress screw
Compatibilidad con sistema de compresión IHC
Ancho del cubo de la rueda 24 mm
Fork | Wheel Diameter Compatibility 100, 110, 115, 120
Fork | Wheel PU Width Compatibility 24 mm, 26 mm, 28 mm
Axis length 35
Thread Threadless
Compress System IHC shim included
Crown race Preinstalled
Spacers to the wheels hub Integrated
Compression top cap ICS cap
Hilo de compresión No
Material Aluminium

Nine years after the birth of its older sister, the Merrow fork returns in its third version.

The sole purpose of the Merrow V3: To be the most optimal and lightest fork possible. (The lightest fork in the world).

It's made entirely of the strongest aluminum (7075) and its curves and shapes are dictated by constraints to make it ultralight yet very strong.

It is still only compatible with 8 STD (8 x 24mm) wheels and can now also accommodate wheels up to 120mm in diameter.

New torx 40 axles: stronger and more practical, now only one wrench is needed to tighten the fork (torx 40 wrench included).

With the advent of this new bolt system format, the Merrow v3 fork can now accommodate a 7075 compression bolt, contributing to the low weight of the entire set.

This fork is available in three versions: SCS / HIC / IHC. Each is optimized for the respective lengths and compression system used.

Available in 3 colours: black / raw / chrome blue



 Evolution (compare with Merrow V2):
- 35% lighter : -102 g (the lightest fork in the world)
- Stronger (+33% on the legs)
- Now compatible with 120 mm wheels
- Compression shim included (HIC and IHC versions)
- SCS version now compatible with multiple settings without the need for a spacer
- HIC version now actually made for HIC bars (avoiding cracks on handlebars)
- IHC version made to be as strong as the other versions

Compatible hardware:
- 8 STD pegs (Alu or steel)
